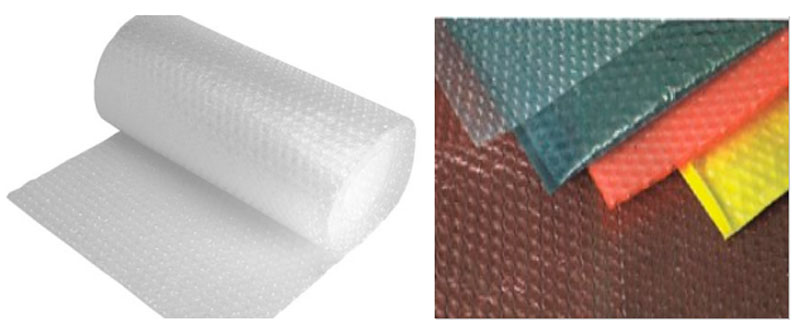

Three layers air bubble film machine also called air bubble wrap film extrusion. machine use Low Density Polyethylene(LDPE) produce air bubble film. Air bubble film machine simple design,easy operate,design for 24 hours 7 days working.
Technical Variables:
|
Model |
KDPEG-1000 |
KDFPG-1200 |
KDPEG-1500 |
|
Raw Material |
LDPE,recycle material,masterbatch and additives material |
||
|
Screw Diameter |
φ65mm+φ50mm |
φ75mm+φ60mm |
φ90mm+φ70mm |
|
Bubble film Max. width |
600mm |
1200mm |
1500mm |
|
Bubble Film Layer |
3 layers,4 layers,5 layers |
||
|
Bubble Film Color |
Transparent,Black,Red,White,blue…bag color changed by masterbatch |
||
|
Output |
55kg/h |
70kg/h |
90kg/h |
|
Total power |
75kw |
82kw |
98kw |
|
L/D Ratio Of Screw |
28：1 |
28：1 |
28：1 |
|
Water Consumption |
0.5m3/h |
0.5m3/h |
0.5m3/h |
|
Machine Weight |
3.5 |
4.5 |
5 |
|
Power Voltage |
220V,380V,440V(Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...) |
||
|
Air Shaft Diameter |
without paper core ,58mm,76mm |
||
|
Machine Working Time |
24 hours*7 |
||
|
Warranty |
1 year |
||
|
Technical Assistance |
Engineers available to service machinery overseas |
||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Our Main parts cooperator as following brand,but standard parts all made from China.
Kingdom Machine Co., Ltd. information column provides you with a film blowing machine, plastic bag machine, plastic recycling machine, flexo printing machine, stretch film machine, and bubble film machine information, including meaning, working principle, application fields, price, and other news.
This article tells you about the characteristics, application range, and maintenance methods of the film blowing machine so that you can understand it better and use it better.
The film blowing machine is used to blow HDPE and LDPE films, which are used in various high-end film packaging, plastic bag films, etc. This kind of film can be widely used in light and heavy packaging due to its good barrier properties, preservation, moisture-proof, frost-proof, oxygen-proof, and oil-resistant.
How to Build Up A Plastic T-shirt Bag Machine? Want Kind Of Machine Need To Buy?
Plastic films can be seen everywhere in our lives, but how did plastic films come from? We have to mention the blown film machine at this time.
