Paper Drinking Straw Machine

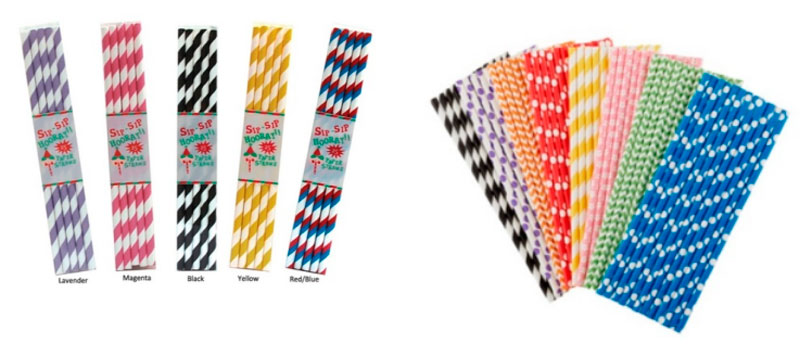

The KDP-1 Series Paper Drinking Straw making machine, is a machine used in the production of all kinds of paper straws, and with up to three colors. These types of straws are disposable and are eco-friendly.

Product Application

• Numerical and multi-cutting system.
• PLC controlling system with automatic operation.
• Synchronous cutting controlled by a servo motor, meaning that the cutting part of the machine is moving together with the paper tubes, cutting with high precision.
• Adopt with Multi-cutters online cutting system. Paper straws are finished in one step.

Technical Parameter
paper layer	1~3 layers
Inner Diameter	5~12mm
Wall Thickness	0.3~1mm
Winding Speed	1~45 meters/min
Cutting	Multi blades
Cutting System	Servo motor synchronism tracking cut
Gluing Way	Single/Double sides
Machine Body	Painting or Stainless Steel (optional)
Paper Straw Collecting	Automatic
Operator	1~2 person
Speed Control	By Inverter
Power Supply	380V/3Phase/50Hz
Control System
Main Forming Motor	2*1.0KW Servo Motor
PLC / Touch Screen	Delta/Wecon
Inverter	Delta
Pneumatic Components	AirTac
Electric Components	Schneilde
Bearing	NSK
Servo Motor	Yaskawa/Delta
Screw Rod/slider	HIWIN/CSK
Configuration
Paper Reel Stand & Glue Unit	3 Layers
Belt	2 Pieces
Mandrel Shaft	2 Pieces
Useful Tool	1 Set
Measurement & Weight
Measurement	350015001200mm
Working Space	7000*5000mm
Weight	1300kgs
Warranty	1 year
Machine Working Time	24 hours * 7 days
Power Voltage	220V,380V,440V,480V(Customized based on request)
