One color PLA drinking straw machine equip with extruder and die mould,cooling water tank, haul-off unit cutting device. This drinking straw machines can produce all kinds of drinking straw, spiral strip straw, medical pipe, all the machines speed control by inverter, machine easy operate.
PLA drinking straw machine

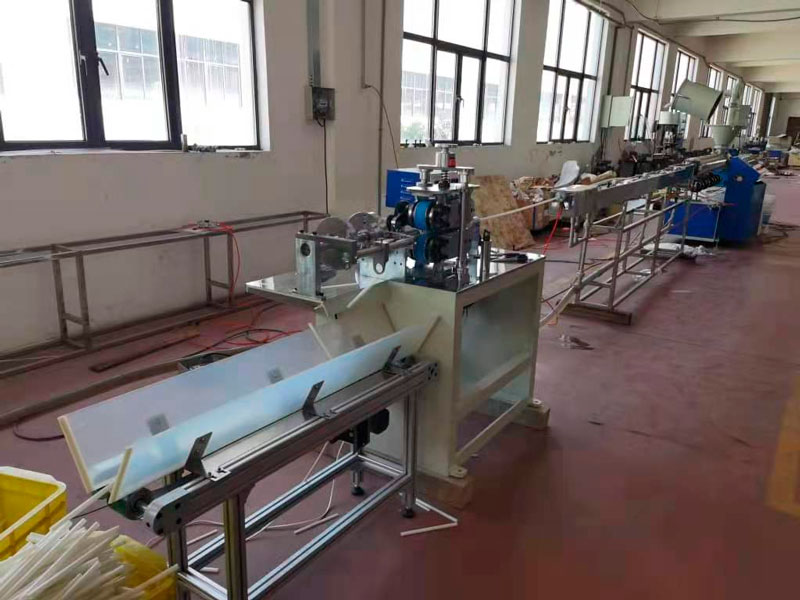

PLA straw making machine is a special tube extrusion line, composed of PLA extruder and die, size setting and water cooling unit, haul-off unit, rotary cutter unit.
|
Model |
KD-1-50 PLA |
|
Material |
Biodegradable PLA |
|
Color |
1 color( or 2colors/3colors as requirement) |
|
Screw dia |
50mm (BM Separate type + pineapple nail structure) |
|
L/D |
33:1 |
|
Barrel heater |
4 zones (each with Ammeter) |
|
Heater |
Nano energy-saving far infrared heating coil |
|
Fan |
constant temperature fan |
|
Hopper |
Drying hopper & Auto-loader |
|
Motor for extruder |
22kw (servo motor) |
|
Inverter |
22kw (Delta brand,Taiwan) |
|
Gearbox |
ZLY146 hardened face gear |
|
Water storage tank |
(length)4400 mm /Steel stainless(with 2~3 blowing devices) |
|
Motor for traction |
0.75kW×1 control by inverter |
|
Output |
30-50kg/hour |
|
Straw dia. |
Φ6mm Φ8mm Φ12mm |
|
Product thickness |
0.1-0.35mm |
|
Dimension |
8.5m×0.9m×1.6 m |
|
Weight |
1900kgs |
|
|
I-shape straw gathering device |
|
Power |
380v 50Hz |
Our Main parts cooperator as following brand,but standard parts all made from China.
