KD-33 U-shape straw packing machine is a machine that can bend flexible straws into U-shape and auto packing them into bags.

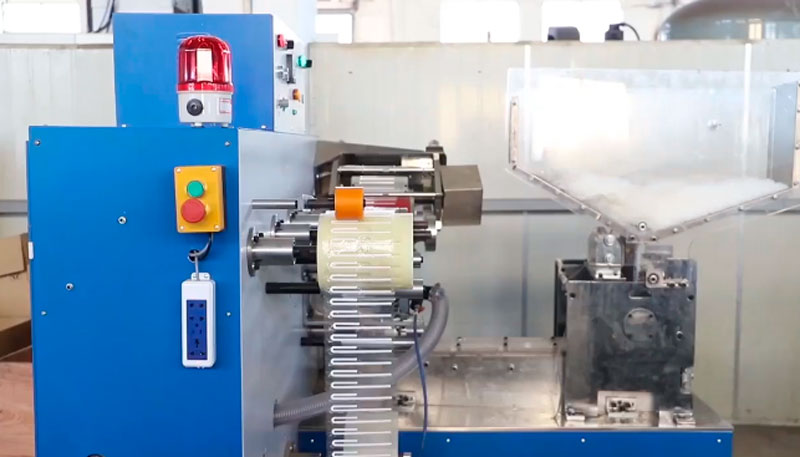

KD-33 U-shape Tetra Pack Packing Machine
The machine is composed of driving motor, driven system, thin film rolling device, hopper, straw filling device, sealing device, it not only makes your straw packing operation easier, but also provides you with a high reliability.
SPECIFICATIONS
|
Item |
KD-33 |
|
Capability |
700～900pcs/min |
|
Main motor |
2.2 kW (VFD) |
|
Vacuum motor |
0.75kW |
|
Flotsam motor |
0.37kW |
|
Heating power |
1.5kW |
|
Wrapping material |
BOPP film |
|
Width of film |
95～160mm |
|
Thickness of film |
0.015～0.018mm |
|
Diameter of straw |
Φ4mm |
|
Thickness of straw |
0.18～0.20mm |
|
Length of U-shape model |
90mm/105mm/128mm |
|
Machine weight |
2000KG |
|
Dimension |
1900mm（W)×2000mm (L) |
|
Warranty |
1 year |
|
Machine Working Time |
24 hours * 7 days |
|
Power Voltage |
220V,380V,440V,480V(Customized based on request) |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
/
Our Main parts cooperator as following brand,but standard parts all made from China.
