This machine made of special steel, high precision die head (optional: Rotary die-head), automatic precise temperature controller, contact-free solid-state relay and other famous national electronic parts. It uses speed adjustment of frequency conversing to stabilize the running and increase the productivity with low energy and good reliability. The blowing type is bottom blowing method.Machine with barrel&screw made of high quality alloy steel.The coiling device adopts torque motor, which can keep the proper tension, and the winding is tidy.
Usage:
Polypropylene film Mainly pack audio-video tape, toy, disc, magazine, glass, advertising material, camera, painting brush, shoes, sweet food and soon.
Optional Equipment:
Optional equipment:
1.Air/water chiller can be added to enhance the transparency of the PP film
2.Rotary die head can be equipped to ensure the film roll surface is smooth and beautiful
3.A double (back-to-back) winder can be equipped to produce single-layered sheet
4.Optional tension control for winder provides good tension film (in rolls), especially effective in food and garment packaging
Type |
PP-F50 |
PP-F55 |
PP-F60 |
PP-F65 |
Diameter of screw |
50mm |
55mm |
60mm |
65mm |
Folding width of film |
100-500mm |
100-600mm |
300-700mm |
300-800mm |
Single-face Thickness of film |
0.01-0.1mm |
0.01-0.1mm |
0.01-0.1mm |
0.01-0.1mm |
Max. Extrusion |
30kg/h |
35kg/h |
40kg/h |
60kg/h |
Power of main motor |
11kw |
15kw |
18.5kw |
22kw |
Length of Traction roller |
550mm |
650mm |
750mm |
850mm |
Outline diameter |
4*1.0 *3.2m |
4*1.1*3.2m |
4*1.2*3.2m |
4.2*1.3*3.5m |
Weight |
3.0T |
3.2T |
3.3T |
3.5T |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
All of our machines with 1 year guarantee.
Our machines are well favoured by customers due to easy operation, perfect performance, easy maintenance good & prompt after sale service.
If you need installment or training service,we can send engineer to your country,
help you install machines,training your workers to use machine(you need pay double way air tickets,salary,food,hotel for our engineer).
Install machines in Saudi Arabia.

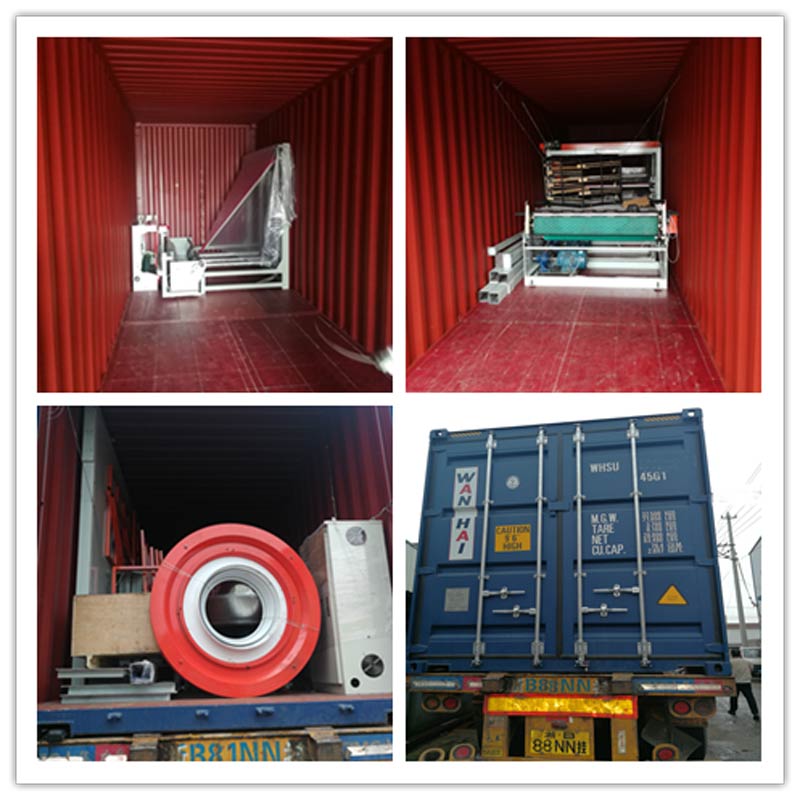

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load(LCL).
Our Main parts cooperator as following brand,but standard parts all made from China.
How To Find Polyethylene For Blown Film Extrusion?
Extrusion Film Extrusion use Polyethylene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
Kingdom Machine Co., Ltd. information column provides you with a film blowing machine, plastic bag machine, plastic recycling machine, flexo printing machine, stretch film machine, and bubble film machine information, including meaning, working principle, application fields, price, and other news.
This article tells you about the characteristics, application range, and maintenance methods of the film blowing machine so that you can understand it better and use it better.
The film blowing machine is used to blow HDPE and LDPE films, which are used in various high-end film packaging, plastic bag films, etc. This kind of film can be widely used in light and heavy packaging due to its good barrier properties, preservation, moisture-proof, frost-proof, oxygen-proof, and oil-resistant.
