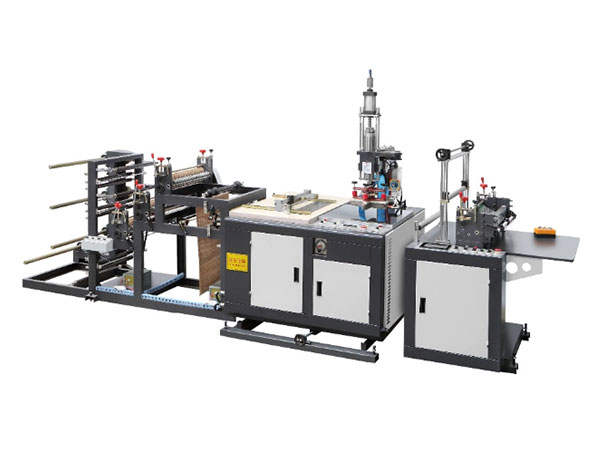

High Frequency PVC Welding Machine
High Frequency PVC Welding Machine
High Frequency PVC Welding Machine

High Frequency PVC Welding Machine

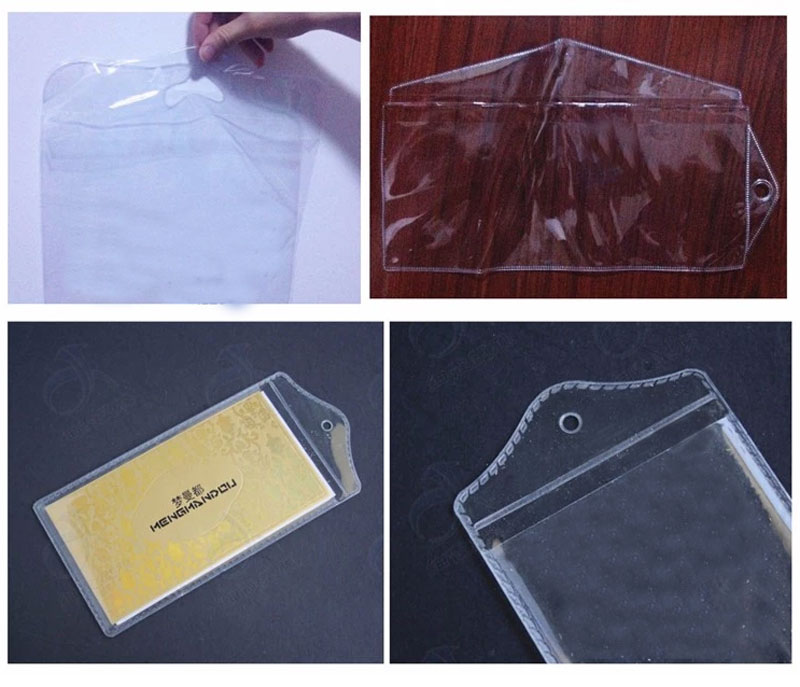

Machine Suitable for Make PVC Packaging Bag, PVC business card packaging bag, CD bag, Medical PVC bag etc PVC material. If it is PVC material, change the machine mould, you can get many different kinds packaging bag.

High Frequency PVC Welding Machine



Feature:

1.Three pcs Unwinding Roll Feeding and Three Pcs Rubber Roll Feeding

2.Tension control,amount 4 Pcs 16KW static box

3.One Set High Quality and High Frequency Equipment, One Pcs mould as machine free.

4.PLC and LCD Computer and Operation System. There have English Language.

5.Automatic Stop when photocell can not track the material feeding.

6.Automatic Counting the finished Quantity and automatic track the printed material.



Main Parameter:

Model

KD-G5

PVC Thickness

0.03-0.27mm

High Frequency Output

5KW

Oscillation Frequency (MHZ)

27

Power Voltage

380V

Max input(KVA)

6KVA

Oscillation Tube

7T85RB

Tube

HVP20

Down electrical plates

450*500

Machine Size(mm)

6200*1300*1600mm

Packing Size

6350*1450*1750mm

Bag Material

PVC

Kind of Bag

PVC Packaging Bag, PVC business card packaging bag, CD bag, Medical PVC bag

Bag Color

Transparent,Black,Red,White,blue bag,color changed by masterbatch

Power Voltage

220V

Material Core Diameter

76mm

Machine Working Time

24 hours * 7 days

Warranty

1 year

Technical Assistance

Engineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
