Plastic Rolling T-shirt Bag Machine

Plastic Rolling T-shirt Bag Machine uses step motor or servo motor for feeding, machine speed control by computer. Bag machine easy to change bag size by computer. Plastic rolling bag machine is specialized for manufacturing perforated core-less bag on roll bag mmand rolling bag with core.

Features

Available produce double line "Star" sealing T-shirt bag,vegetable bag,table sheet cloth & garbage bag.
Equipped with one printing photocell,can produce printed bag on roll.
This model machine can produce 2 lines bag on roll at same time.
Machine simple design,easy operate.
This plastic bag machine will stop automatically and alarming when the printing photocell tracking fail.

Plastic Rolling T-shirt Bag Machine

Main Technical Variables:

Model	KDB-500	KDB-600	KDB-800
Max Bag Width(mm)	400	500	700
Max Bag Length (mm)	1000	1000	1000
Bag Thickness	0.008-0.15	0.008-0.15	0.008-0.10
Bag Material	LDPE,HDPE,LLDPE,recycle film

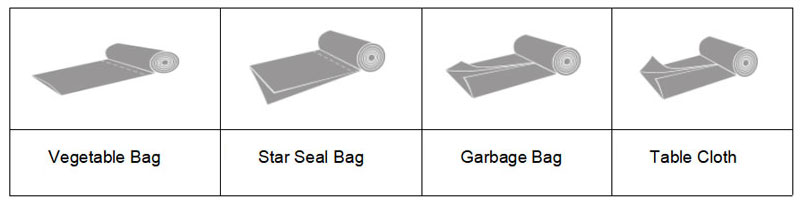

Bag	Garbage bag,vegetable bag,star seal bag,table sheet cloth
Bag Color	Transparent,Black,Red,White,blue…bag color changed by masterbatch
Core for bag	25mm or without core
Machine Speed(pc/min)	140-200	40-120	40-120
Motor Power(kw)	1.1	1.1	1.5
Heating Power	1.2	1.6	2.2
Machine Dimensions	3.6X1.2X1.7 m	3.4X1.3X1.7 m	3.6X1.5X1.7 m
Machine weight (kg)	800	900	100
Power Voltage	220V 1PHASE
Machine Working Time	24 hours * 7 days
Warranty	1 year
