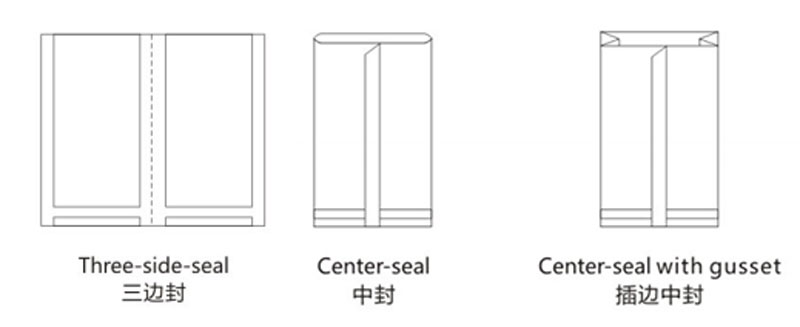

Three-side Sealing & Middle Sealing Bag-making Machine (Double Winder )

1. Whole machine controlled by central PLC control system with man-machine. More stable performance, easy for operation and maintenance. Chinese and English interface language can be shifted easily.
2. Constant auto-tension control for unwinding, EPC edge position controller, AC inverter constant speed auto material feeding.
3. Imported double servo-motor material dragging control system.
4. Main motor for up-down sealing and pressing equipped with inverter.
5. PID for sealing bar temperature adjustment, no touch auto control, centralized setting in man-machine interface.

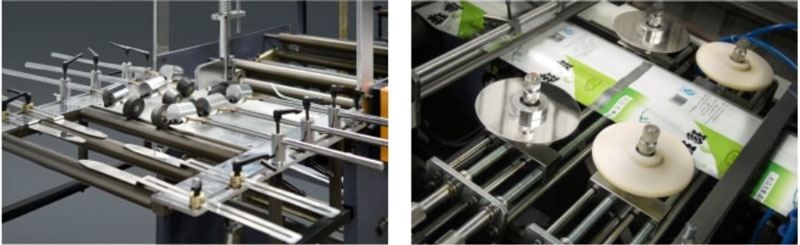

6. Equipped with Pneumatic multi-function auto punching device, trim cutting and auto rewinding and static eliminator.
7. Temperature adjustment range: 0~300°C.
8. Counter: quantity, batch accumulation, preset available.
9. Operation Method: by length fixation control and/or by photocell tracking control.
10.Punching device: working rhythm can preset as continuous, interval or stop, punching time can be preset.
11.Material Skip Feeding: one to six times available.
12.Batch Conveying Function available, the quantity of batch can be preset.

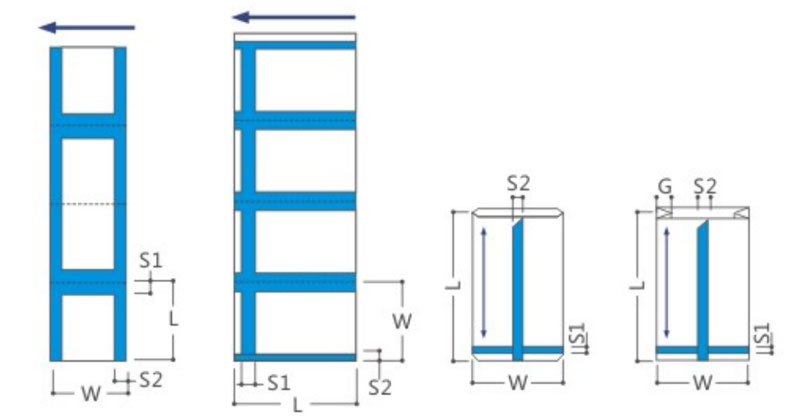

S2:5-30mm               W：50-400mm         W：50-400mm

W：50-2400mm       L：50-2400mm         L：50-2400mm

L:75-600mm             SI：5-80mm              G：10-80mm

SI：5-80mm             S2：5-20mm             SI：5-80mm

S2：5-25mm                                             S2：5-20mm

Remark: Skip feeding function available for length over 400mm.

Our Main parts cooperator as following brand,but standard parts all made from China.
