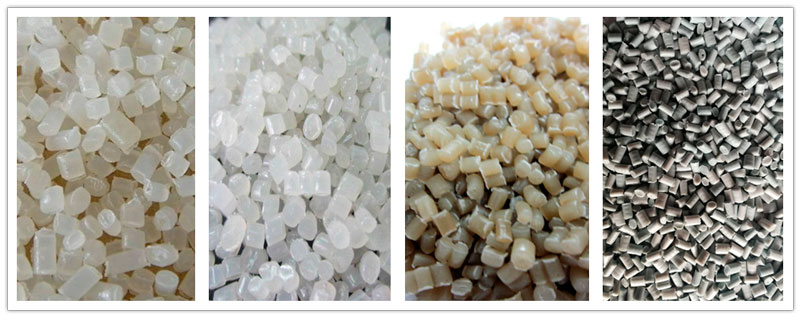

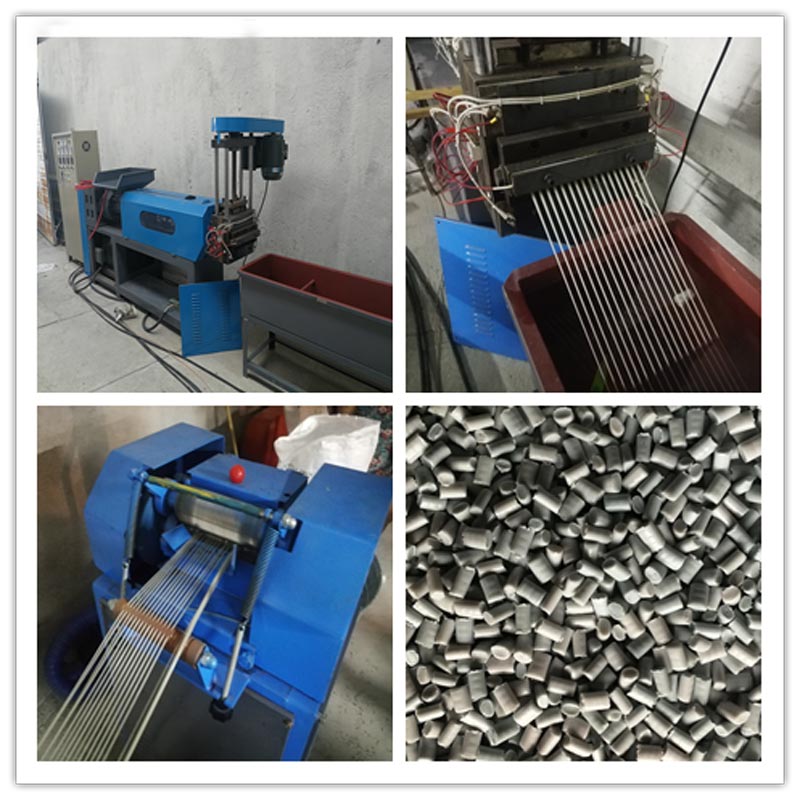

SJ-C90、100、110、120 Waste Plastics Recycling Machine is used for recycling of the used and waste plastic materials. It equipped with automatic constant temperature,clectric changing filter nets.It also can pelletize the croushing material after fitting with a loader. The cutting machine adopts speed regulating motor. which can cut the matcrial according to the feeding speed of the extruder. With such features as high output,low noise, stable performance and easy operation. It is a more ideal waste plastic film regenerative.pelletizer.
High speed plastic recycling machine suit to recycle plastics products,as HDPE,LDPE,etc.
plastic recycle machine speed control by inverter,save power.
The granulating crusher uses adjustable speed motor.machine easy operate,high capacity.
Feature:
Main Technical Variables
model |
SJ-C100 |
SJ-C110 |
SJ-C120 |
Diameter of Screw |
95mm |
105mm |
110mm |
L/D Ratio of Screw Stem |
20:1-22:1 |
20:1-22:1 |
20:1-22:1 |
Ration Speed of Screw |
10-110rpm |
10-110rpm |
10-110rpm |
Main Motor Power |
30kw |
30kw |
37kw |
Output |
90kg/h |
110kg/h |
130kg/h |
Machine Weight |
2.1t |
2.2t |
2.5t |
Overall Dimensions |
5900x1300x1200mm |
6000x1350x1300mm |
6200x1400x1350mm |
Power Voltage |
220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...) |
||
Machine Working Time |
24 hours * 7 days |
||
Warranty |
1 year |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Our Main parts cooperator as following brand,but standard parts all made from China.
