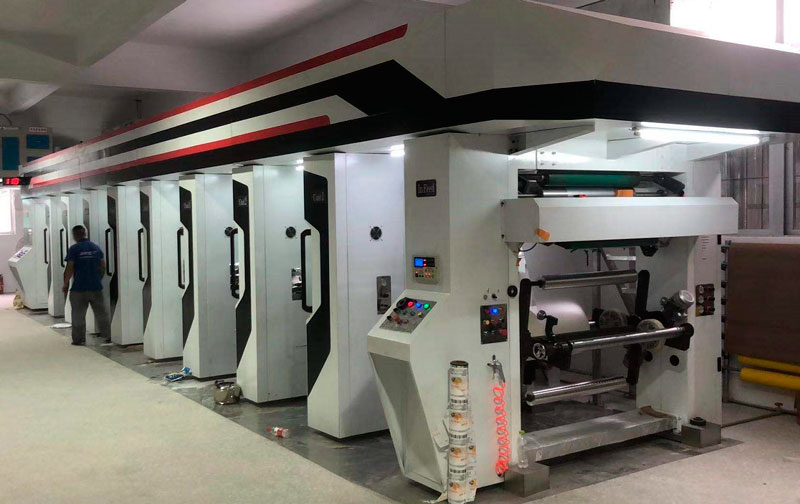

Computerize Color Register Rotogravure Printing Machine

This machine is suitable for printing roll plastic, film, OPP,nonwoven cloth, PVC,thin leather, paper,aluminum foil, cloth and various soft packages with excellent Performance and it is a kind of ideal printing equipment for wine box, shoe bag and vest bag.

Feature:

1. Double air-shaft in rewinding, dual-station auto receiving material without stop.
2. Unwinding auto constant tension control
3. Air cooling device
4. Options: water cooling device
5. Swing roller double cylinder impressing
6. Shaft-less type load plate
7. Drying device is double layer circular hot air oven
8. Centralize exhause air device
9. Computer register system(brand according to clients)
10. Video inspection unit (brand according to clients)
11. Extra options: obverse and inverse double printing device
12. Torque motor for rewinding.

Computerize Color Register Rotogravure Printing Machine

Model of machine	KDASY-C800	KDASY-C1000	KDASY-C1200
Width of Printing	800mm	1000mm	1200mm
Max. Machinery speed	120m/min	120m/min	120m/min
Printing Speed	10-100m/min	10-100m/min	10-100m/min
Max. Dia. Of Roll	600mm	600mm	600mm
Dia. Of roll core	76mm	76mm	76mm
Version Accuracy	+/-0.1mm	+/-0.1mm	+/-0.1mm
Dia. Range of Printing Cylinder	100-350mm	100-350mm	100-350mm
Total Power	110kw	115kw	120kw
Outline Dimension	8800×1600×2000mm	8800×1800×2000mm	8800×1800×2000mm
