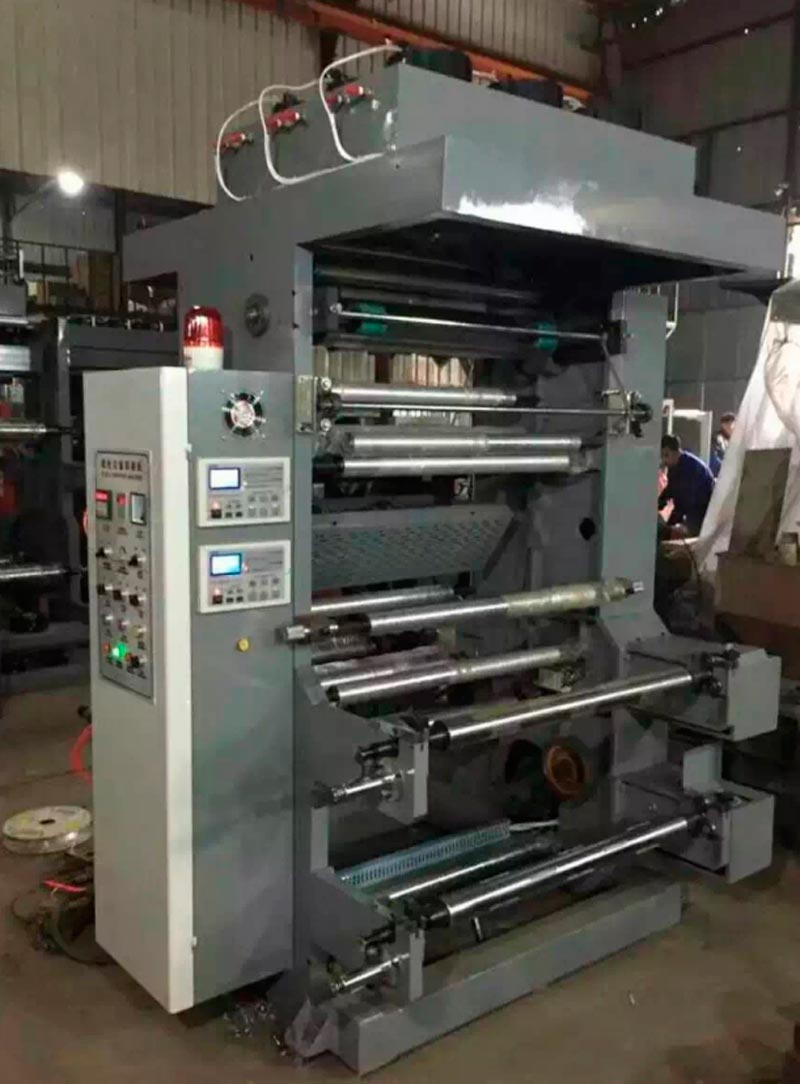

Two Colors Middle Speed Flexographic Printing Machine

Name: Two Colors Middle Speed Flexographic Printing Machine
Brand: Kingdom
SKU: 00382
Rating: 4.1 (241 reviews)

Constitution of Printing: Metal Anilox roller, Rubber roller, Chrome plated roller, printing Cylinder for printing length 400mm, Optional device :ceramic anilox roller,single doctor blade,ink pump; Working Principle: helical gears

Product information

Two Colors Middle Speed Flexographic Printing Machine

	YT-M2600	YT-M2800	YT-M21000	YT-M21200
Max.material width	600mm	800mm	1000mm	1200mm
Max.printing width	560mm	760mm	960mm	1160mm
Main motor power	2.2kw	2.2kw	2.2kw	2.2kw
Total power	12kw	12kw	14kw	14kw
Machine weight	2000kgs	2400kgs	3700kgs	4000kgs
Outline dimension	2.2x1.6x2.2m	2.2x1.8x2.2m	2.2x2.0*2.2m	2.2x2.2x2.2m
Printing colors	2 colors (2+0,1+1)
Printing length	220-1200mm
Machine speed	100m/min
Printing speed	70-80m/min
Material of Plate	Resin or Rubber
Constitution of Printing	Metal Anilox roller、Rubber roller 、Chrome plated roller、 printing Cylinder for printing length 400mm
	Optional device :ceramic anilox roller,single doctor blade,ink pump;
Working Principle	helical gears
Printing precision	+/-0.25mm
Thickness of Plate (including the glue)	2.38mm
Machine Voltage	380V 50/60HZ 3PH

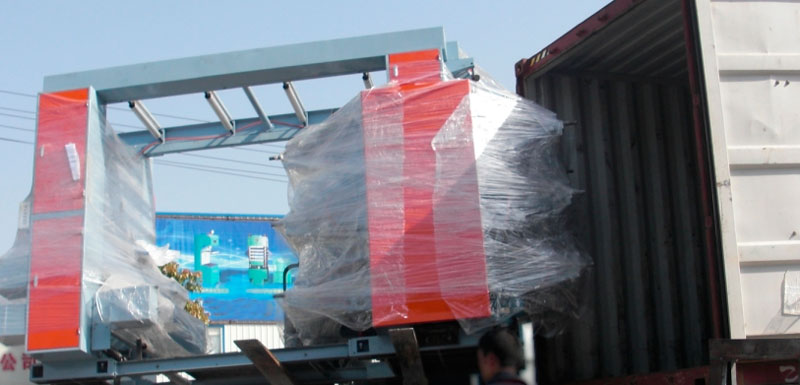

Loading container

Two Colors Middle Speed Flexographic Printing Machine
