Computer Auto Split Cutting Machine (Surface Unloading Roll)

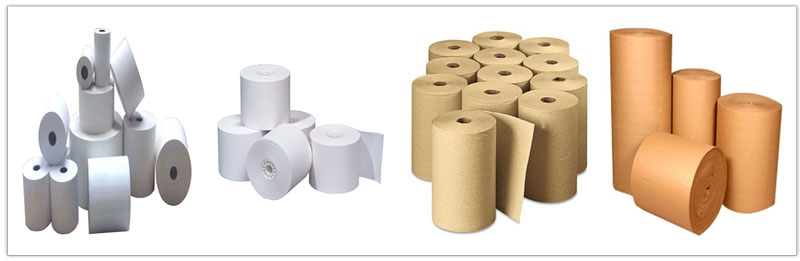

This machine is an ideal equipment which is suitable for small-scale cutting these materials, such as reel paper, plastic piece, AI foil, PVC, plastic film and insulation material, etc.

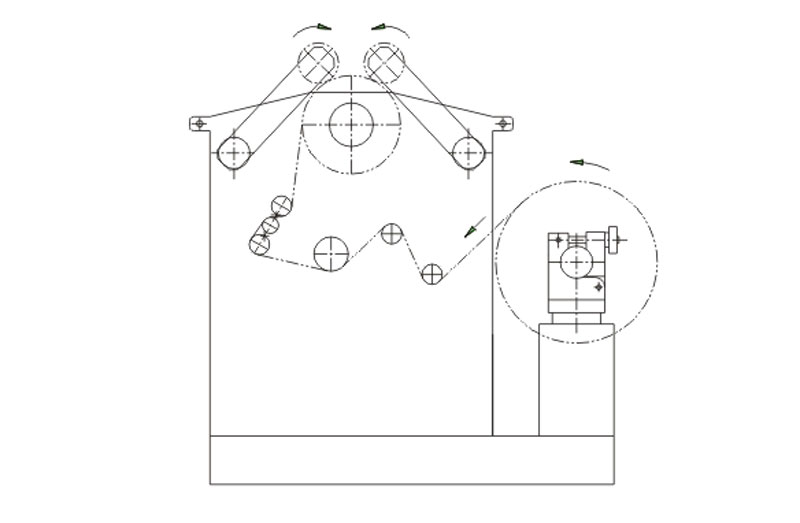

The main machine features with frequency speed control, unwinding with constant tension magnetic powder control, photo-electricity automatic deflection-rectifying winding with both central and surface reeling which coordinated controlled (air pressure) by two magnetic powder clutches and main machine, interleaving winding with double shafts and never undercutting, presetting counter and automatic stop.

Computer Auto Split Cutting Machine (Surface Unloading Roll)

Main Technical Variables:

Type	KDFQ-600	KDFQ-800	KDFQ-1000
Max. Width of Mother Roll	600mm	800mm	1000mm
Max. Diameter of Mother Roll	ф600mm	ф600mm	ф600mm
Material	Paper,HDPE, LDPE, LLDPE,PET,BOPP,OPP,CPP film
Width of Final Roll	20～600mm	20～800mm	20～1000mm
Slitting and Rewinding Speed	5～120m/min	5～120m/min	5～120m/min
Tolerance of EPC	±0.5mm	±0.5mm	±0.5mm
Total Power	2.2Kw	3 Kw	3 Kw
Weight of Machine	1200kg	1400 kg	1600 kg
Overall Dimension	19×10×13cm	23×10×13cm	25×10×13cm
Power Voltage	220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)
Material Core Diameter	76mm(3 inch)
Machine Working Time	24 hours * 7 days
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas
