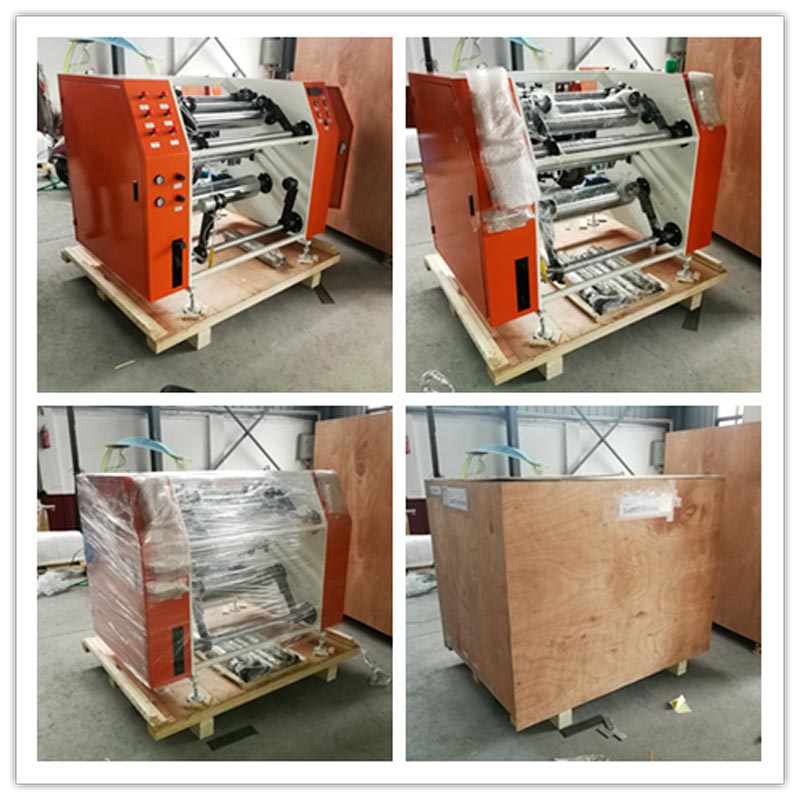

Automatic Stretch Film Rewinding Machine

Full automatic machine designed for the rapid rewinding of stretch film from jumbo roll into small rolls. The layout and operation make it user friendly and ideal for volume production. A skilled operator is not required. It is suitable Both for stretch & cling film rewinding.

Feature:

Auto rewinding max. machine speed at 800 Mts/min

High production rate and quick change over

Fully automatic cycle with Programmable Logic Controller (PLC) control

Paper core to be ordered from 1,2,3 inch.

Free tension rewinding, No stretching occurs while rewinding

LLDPE stretch film,PVC stretch film,LLDPE cling wrap film,PVC food wrap film.

rewinding film from big roll to small roll

inverter control rewinding machine peed,save power,ECO and save cost.

Machine with meter counter

Warrant is one year,machine can running nonstop,24 hours a day, 7 days a week

Machine with simple design,easy operate

Machine is economic design,suit for new beginner or starters

Machine power 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)

Main Technical Parameters:

Model	AKDRW-500	AKDRW-600	AKDRW-700
Film width	280-500mm	280-600mm	300-720mm
Rewinding width	280-500mm	280-600mm	300-720mm
Max. Dia. of Jumbo roll	400mm	400mm	400mm
Max. Dia. of Rewinding roll	300mm	300mm	300mm
Rewinding speed	900m/min	900m/min	900m/min
Winder exchanging	Automatic
Core size of unwinding	3”
Core size of rewinding	1-3”
Power Voltage	220V,380V,440V
Conveyor & stack	Optional device
Machine Working time	24 hours*7
Paper Core Diameter	76mm(3 inch)
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas
