Cling Film Making Machine
Cling Film Making Machine
Cling Film Making Machine

Cling Film Making Machine

Cling film machine also called Cast cling food wrap film machine,machine use LLDPE to produce stretch film, which widely used for pack airport luggage packing,pallet packing,carton packing,building material packing, auto parts packing, hardware parts packing etc.

Cling film machine with following equipment: one screw, one motor motor,two inverter,simple design,easy operation,low noise, stable running, especially winding part is controlled by PLC touch screen. The machine is equipped with extruder, traction part, leveling part, edge trimming, winding and finished roll automatic changing etc.

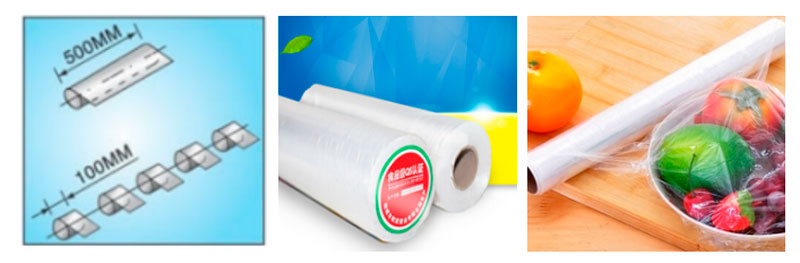

Cling film is a kind of plastic film. As a kitchen product, plastic wrap can block moisture and prevent direct contact between air and food. It is mainly used for cooking, holding food, preserving food, or making some materials that can be easily cleaned.

Cling Film Making Machine

Cling Film Making Machine



Optional Equipment:

1)Auto load

2)Auto dry hopper

3)Motorize net changer

4)Hydraulic net changer

5)glue pump

6)air compressor

7)Chiller

8)Waste film crush online



Main Technical Parameter

Model

KD-600x1

Material

LLDPE

Screw Diameter

φ55mm

Film Layer

One layer

L/D Ratio Of Screw

30:1

Speed of Screw

10-120rpm

Width of die head (mm)

750mm

Film Width

600mm (300*2roller)

Film Thickness

0.007--0.012mm

Film Color

transparent

Main Motor Power

15kw

Max Output

30kg

Heating power

20KW

Water Consumption

0.5m3/h

Air Consumption

3m3/h

Machine Weight

4T

Overall Dimensions(L*W*H)

60*15*25cm

Total Power

45kw

Power Voltage

220V,380V,440V

Machine Working time

24 hours*7

Material Core Diameter

76mm(3 inch)

Warranty

1 year

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.



Cling Film Making Machine

Cling Film Making Machine

Cling Film Making Machine

Cling Film Making Machine

Cling Film Making Machine

Our Main parts cooperator as following brand,but standard parts all made from China.
