Double Layers Stretch Film Making Machine

two layers 500mm LLDPE stretch film machine with following features: two extruders,two motors,two inverters,simple degisn,easy operation,low noise, stable running, especially winding part is controlled by PLC touch screen. The machine is equipped with extruder, traction part, leveling part, edge trimming, winding and finished roll automatic changing etc.

Optional Equipment:

1)Auto load

2)Auto dry hopper

3)Motorize net changer

4)Hydraulic net changer

5)glue pump

6.air compressor

7.Chiller

8.Waste film crush online

Double layers stretch film making machine

Main Technical Parameter

Model	KD-500x2	KD-1000x2
Material	LLDPE,LDPE,biodegradable material
Screw Diameter	φ55 x2	Φ65x2
Film Layer	two layers	two layers
L/D Ratio Of Screw	30:1	30:1
Speed of Screw	10-120rpm	10-120rpm
Film Width	200-500mm	1000mm(500*2rollers)
Film Thickness	0.017-0.05mm	0.017-0.05mm
Film Color	Transparent,Black,Red,White,blue…bag color changed by masterbatch
Max Output	40kg	100kg
Water Consumption	0.5m3/h	0.5m3/h
Machine Weight	3T	8T
Overall Dimensions(LWH)	600015002500mm	1000040003000mm
Power Voltage	220V,380V,440V	220V,380V,440V
Machine Working time	24 hours*7	24 hours*7
Material Core Diameter	76mm(3 inch)	76mm(3 inch)
Warranty	1 year	1 year
Technical Assistance	Engineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

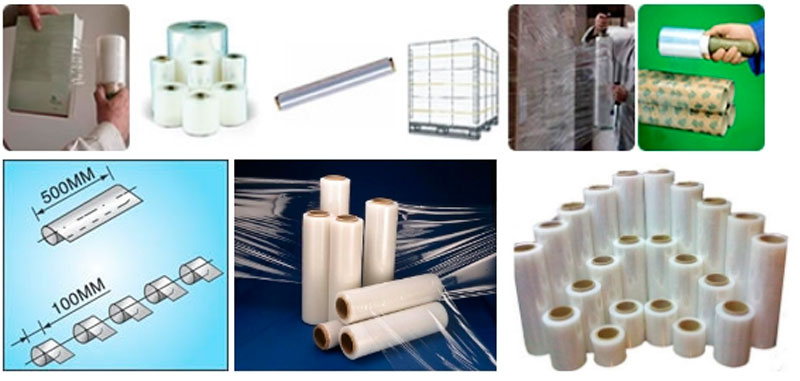

Stretch film machine also called Cast stretch film machine,machine use LDPE and LLDPE to produce stretch film, which widely used for pack airport luggage packing,pallet packing,carton packing,building material packing, auto parts packing, hardware parts packing etc.

Stretch film machinery has good vertical and horizontal two-way cold stretching characteristics, and has a large retractability, long-lasting tightening force, single-sided or double-sided self-adhesive, and suitable breathable moisture permeability. Rely on its own stickiness.

Feature:

LLDPE,LDPE virgin raw material, recycled material,masterbatch and additives materia

inveter control film extruder speed,save power,ECO and save cost.

Film thickness 0.017mm-0.04mm

Film width 100mm-500mm

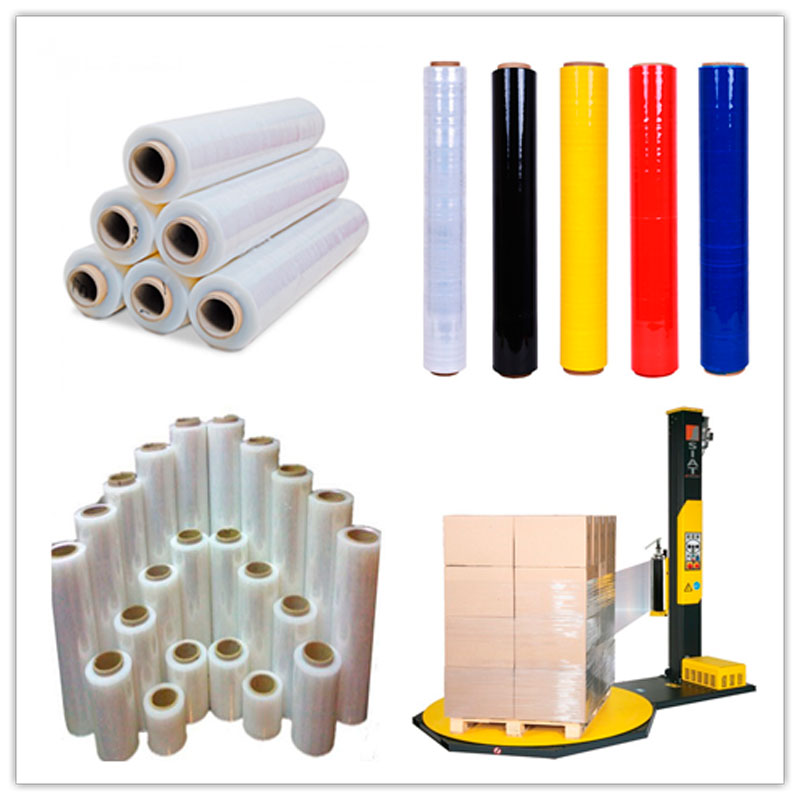

Film suit for Stretch film,pallet packing,carton packing,building material packing,auto parts packing,hardware packing,luggage wrap packing,

Screw material is 38CrMoAl,can use long time

Warrant is one year,machine can running nonstop,24 hours a day, 7 days a week

Machine with simple design,easy operate

Machine is economic design,suit for new beginer or starters

Machine power 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)

Afford after sale service,can send engineer to buyer factory,to install machine and afford training service.

We are welcomed customers Customized machines or OEM design.

Main Technical Parameter

Item	KD-500*2
material	LLDPE
Screw diameter(mm)	Φ55+Φ55
L/D ratio of screw (L/D)	30:1
T-die Mould width (mm)	650mm
Film width(mm)	500mm
Thickness of finished products (mm)	0.017-0.05
Structure of film layers	A/B
Max output (kg/h)	40
Linear speed of machinery (m/min)	10-120
Total power (KW)	50
Overall dimensions (LWH)m	61.52.5
Weight (T)(About)	3
Film color	Transparent,Black,Red,White,blue…bag color changed by mastbatch
Power Voltage	220V,380V,440V
Machine Working time	24 hours*7
Material Core Diamater	76mm(3 inch)
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas
